UV Curing Systems
UltraV-C1
UltraV-C1 comes with 2 numbers of UV radiation source of 254nm wavelength. The built-in turn table makes sure the exposure in uniform over the substrate.

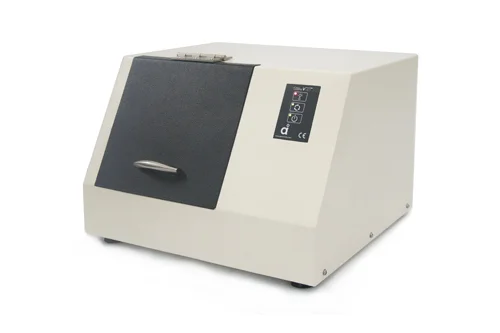

UV Curer cum Exposure Chamber - UltraV-C1
Applications
- Basic & Applied Material Research
- Semiconductor Sciences
- Telecommunication Engineering
- Electronics Application
- Metal, Glass & Plastic Decoration
- Graphic Arts
- Automotive Industries
- Ink & Adhesive Manufacturing Industries
Benefits
- Less Lab Space needed
- Increase Yield and Reduce Scrap
- Faster Production Speeds and Capacity
- Dramatically Reduced Set-up & Clean-up Labour
- Reduction of Work-in-process
- Formation of Inks, Coatings, and Adhesives with dramatically improved Physical Properties
Product Specifications - UltraV-C1
- 2 Nos. of UV Lamps
- UVC Type Radiation
- MUV Radiation of Wavelength Range 200-300 nm
- Peak UV Wavelength of 254 nm
- Average Photon Energy of 4.13-6.20 eV
- UV Lamp Wattage of 8 W / Lamp
- UV Lamp Current of 0.15 A / Lamp
- UV Lamp Voltage of 56 V / Lamp
- UV Output of 2.4 W / Lamp
- Maximum Irradiance of 5,500 μW/sq.cm
- Average Lamp Life of 11,000 Hrs. / Lamp
- Maximum Lumen Depreciation of 15% / Lamp across the Lamp Life
- 4.4 mg Mercury Content / Lamp
- Working Chamber of 350 mm (L) X 250 mm (W) X 250 mm (H)
- PTFE Coated Turn-table Diameter of 230 mm
- R.P.M. of Turn-table: 5
- Power Input: Indian Standard
