UV Curing Systems
UltraV-C1N
For experiments in near UV range, we introduce UltraV-C1 N, which comes with 2 numbers of UV radiation source of 365nm wavelength. The built-in turn table makes sure the exposure in uniform over the substrate.

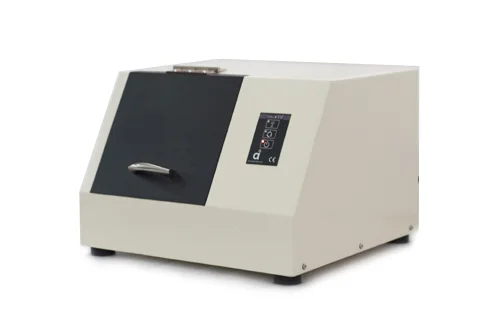

UV Curer cum Exposure Chamber - UltraV-C1 N
Applications
- Basic & Applied Material Research
- Semiconductor Sciences
- Telecommunication Engineering
- Electronics Application
- Metal, Glass & Plastic Decoration
- Graphic Arts
- Automotive Industries
- Ink & Adhesive Manufacturing Industries
Benefits
- Less Lab Space needed
- Increase Yield and Reduce Scrap
- Faster Production Speeds and Capacity
- Dramatically Reduced Set-up & Clean-up Labour
- Reduction of Work-in-process
- Formation of Inks, Coatings, and Adhesives with dramatically improved Physical Properties
Product Specifications - UltraV-C1N
- 2 Nos. of UV Lamps
- UVA Type Radiation
- NUV Radiation of Wavelength Range 300-400 nm
- Peak UV Wavelength of 365 nm
- UV Lamp Wattage of 7.1 W / Lamp
- UV Lamp Current of 0.145 A / Lamp
- UV Lamp Voltage of 56 V / Lamp
- UV Output of 1.3 W / Lamp
- Maximum Irradiance of 3,000 μW/sq.cm
- Average Lamp Life of 10,000 Hrs. / Lamp
- Working Chamber of 350 mm (L) X 250 mm (W) X 250 mm (H)
- PTFE Coated Turn-table Diameter of 230 mm
- R.P.M. of Turn-table: 5
- Power Input: Indian Standard
Learn more about the UltraV-C1N UV Curing System in the Product Brochure
How it works Learn more about the Contact Angle Measurement Technology in the Technology Info tab
